150L 304SS Jacketed Collection and Storage Vessel

150L 304SS Jacketed Collection and Storage Vessel with Locking Casters

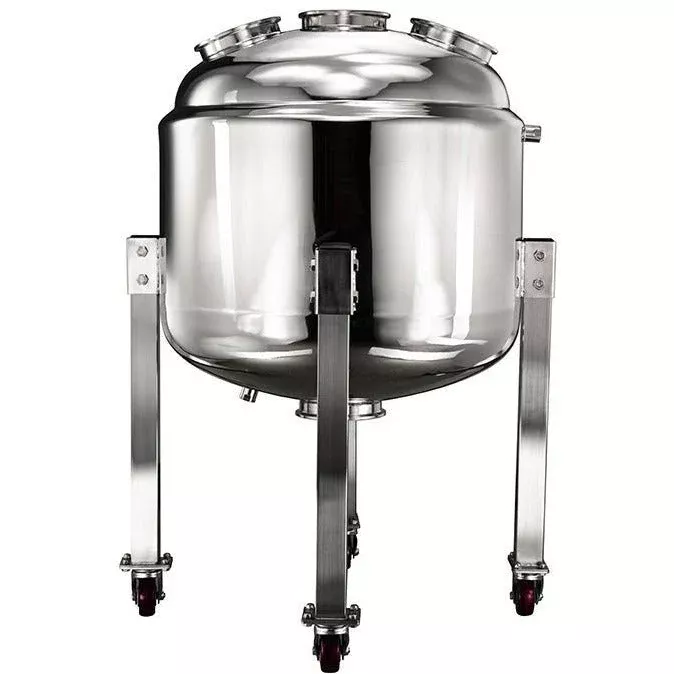

This massive 304 Stainless Steel Jacketed vessel can hold up to 150L of water (~40 gallons) and has a (3) 6″ Tri-Clamp/ Tri Clover ports on the top and a 6″ Tri-Clamp port on the bottom of the vessel. The outer jacket has 2x 1/2″ FNPT ports to allow the circulation of heat transfer fluids and can also be used a vacuum jacket and can hold 21.5L or 5.68 gallons of fluid in the outer jacket. This unit also features 4 stainless steel legs with locking casters to allow the vessel to be moved around easily including 32″ and wider doorways.  (Note: this unit comes bare and does not include any fittings besides the legs with casters.)

BVV™ 150LR – Technical Drawing

Specifications
Material	304 Stainless Steel
Pressure Rating	250 PSI MAX Outer Jacket Rating: 100 PSI
Connection Type(s):	(3) 6″ Tri-Clamp Top Ports
6″ Tri-Clamp Bottom Port
(2) 1/2″ FNPT Ports on the jacket
